RG178 SMA Cable 50Ohm Gold Plated SMA Male Straight Connector
SMA electrical connectors are threaded-coupling RF coaxial connectors with miniature size, vibration-proof and wide frequency range up to 18 GHz (Our SMA RF connectors can be 20 GHz), which makes them widely used for microwave, antennas and testing instrumentation etc.
We can customize SMA RF connectors and adapters as per customers' different requirement. Both SMA bulkhead and SMA flange mount are available as well as SMA right angled connectors.
Specifications:
| Electrical Characteristics: |
| Impedance | 50Ω |
| Frequency Range | Flexible cables | DC~12.4GHz |
| Semi-rigid cables | DC~18GHz |
| Voltage Rating | 335 VRMS(Max.Sea Level) |
| Dielectric Withstand Voltage | 1000VRMS(Max.Sea Level) |
| Insulation | Resistance ≥5000MΩ |
| Contact Resistance | Center conductor | ≤3.0mΩ |
| Raws | Outer conductor | ≤2.0mΩ |
| VSWR(Voltage Standing Wave Ratio) | ≤1.3 | |

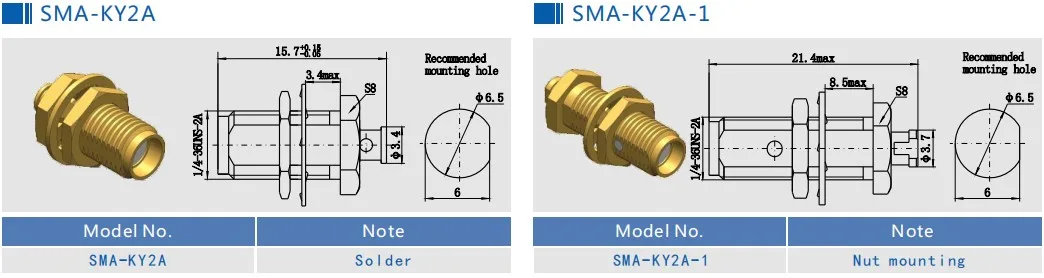

Outline Drawing of SMA RF Coax Connectors:
(mm)
Material and Mechanical Characteristics:
| Material and Mechanical Characteristics: |
| Center Conductor | Male/Plug | Brass | Gold Plated |
| Female/Socket | Beryllium Bronze | Gold Plated |
| Resilient Contact | Beryllium Bronze | Nickel Plated |
| Shell/Housing | Brass | Gold Plated |
| Shell/Housing | Stainless Steel | Passivated |
| Insulator | PTFE |
| Sealing Ring | Silicone Rubber |
| Durability | 500cycles |
| Torque | 0.79~1.13N.m |
| *Other material and finish coating can be customzied |
Key Features:
1. Frequency range up to 18GHz Sub-miniature coaxial connectors
2. Using a threaded interface
3. Available in passivation or gold plating
4. Brass and stainless steel material options
5. Wide variety of orientations and PCB terminations
6. Available in straight or right angle versions
7. With bulkhead, 2 hole panel, 4 hole panel or mountless options.
8. Broad range with male, female and adapters variants.
9. RoHS compliant
Product Cataloge:
| RF Adapter |
| SMA/SSMA RF Connector |
| SMP/SSMP RF Connector |
| TNC RF Connector |
| N Type RF Connector |
| MCX/MMCX RF Connector |
| BNC RF Connector |
| RF Cable Assemblies |
| Waveguide To Coaxial Adapter |
| Glass-to-metal Hermetic Seals |
| J30J Series Connector |
| Microwave Rotary Joints |
Application:
* Aerospace
* Broadband
* Instrumentation
* Base Station
* Mobile communication
* Outdoor facilities
* Radar,microwave
* Phased array antennas
* Telecommunications
* Board-to-board interconnect

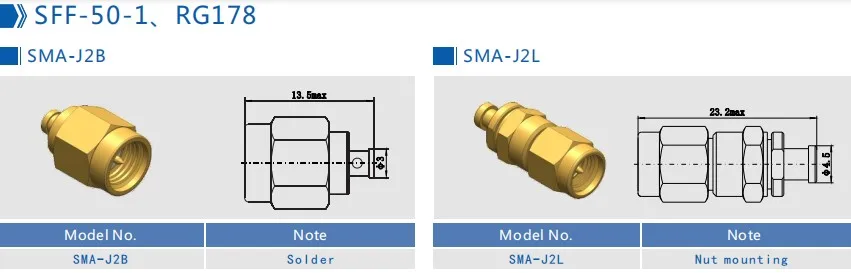

Interface Dimentions:
Similar Products
1.For RG178 Cable Gold Plated Straight SMA RF Connectors

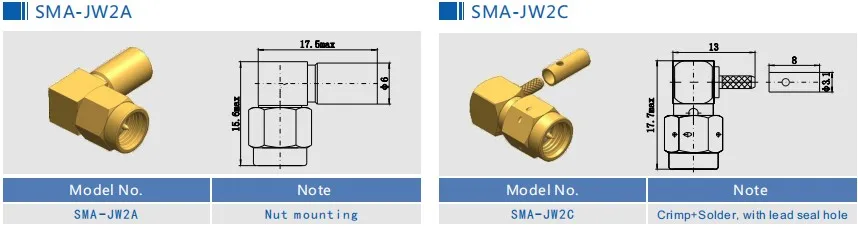

2.For RG178 Cable Gold Plated RA SMA RF Connectors
3.For RG178 Cable Gold Plated Bulkhead SMA RF Connectors
NOTE:
We have over 10,000 types of SMA Connector, if the connector you are using is not found, please contact us with your details.
