50Ω Hermetically Sealed SMPM Male Bulkhead RF Coaxial Connector 0.3MHz-40GHz 170V

Brand Name : ELT

Model Number : SSMP-JYD4

Certification : ISO9001, IS014001

Place of Origin : Xi'an, China

MOQ : MOQ 100 pieces

Price : The price depend on the quantity

Payment Terms : T/T,L/C,D/P

Supply Ability : As requirements

Delivery Time : 8-12 weeks for new production

Packaging Details : 100pcs/bag or plastic bottle;100pcs/carton as requirement

Product Name : SMPM Male Bulkhead Connectors

Model : SSMP-JYD4

Frequency Range : 0.3MHz-40GHz

Impedance : 50Ω

Rated Voltage : 170v

DWV : 500V

Insulation Resistance : ≥5000MΩ

Center Conductor : Kaval Alloy, Gold Plated

Outer Conductor : Kaval Alloy, Gold Plated

Samples : Available，In Stock

Contact Now

50Ω Hermetically Sealed with Glass SMPM Bulkhead Connector Screw M4 Male RF Coaxial Connector 0.3MHz-40GHz

Product Description

The SMPM coaxial connector is designed to meet "small package design needs" and can serve as a "highly shielded interconnect" suitable for "high data rate applications." Its shielding capability reduces signal interference, ensuring high-quality signal transmission at high speeds. This series connector are typically pair used with a SMPM female to female adapter," it forms a board-to-board connection system. This adapter can compensate for "radial" and "axial" misalignments, addressing positional errors during Board-to-Board Connection.

Key Features of SMPM Bulkhead Connectors

Physical Separation

Physically separates the spaces at both ends of the connector (such as the interior and exterior of a device, or two independent cavities) to avoid electromagnetic interference or environmental effects (e.g., dustproof, waterproof).

Stable Fixation

Prevents the connector from shifting due to vibration or insertion/removal forces, ensuring stable signal transmission.

Product Specifications

Items	Value
Product Name	SMPM Male Bulkhead Connector
Model	SSMP-JYD4
Frequency Range	0.3MHz-40GHz
Impedance	50Ω
Rated Voltage	170V
DWV	500V
Insulation Resistance	≥5000MΩ
Center Conductor	Copper Alloy, Gold Plated
Outer Conductor	Copper Alloy, Gold Plated
Insulation Dielectric	Glass

Product Outline Dimensions SSMP-KYD4 ( Screw M4 x 0.5-6g , Unit: mm)

50Ω Hermetically Sealed SMPM Male Bulkhead RF Coaxial Connector 0.3MHz-40GHz 170V

Note 1:Hermetic Note 2:Engagement Depth 1.4 Note 3: Engagement Depth 2.11

We also have screw-threaded Locking Connectors, the threaded locking series connectors feature multiple positioning platforms. They can be soldered onto a board and then locked with other products using the threads (M3.5 X 0.35-6g Screw).

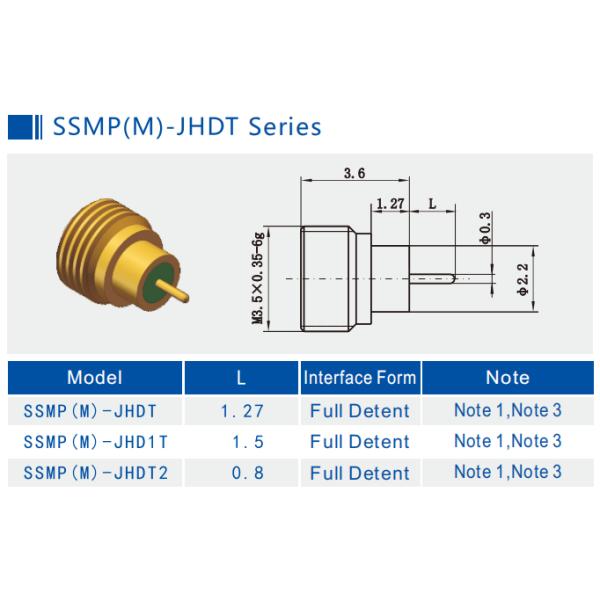

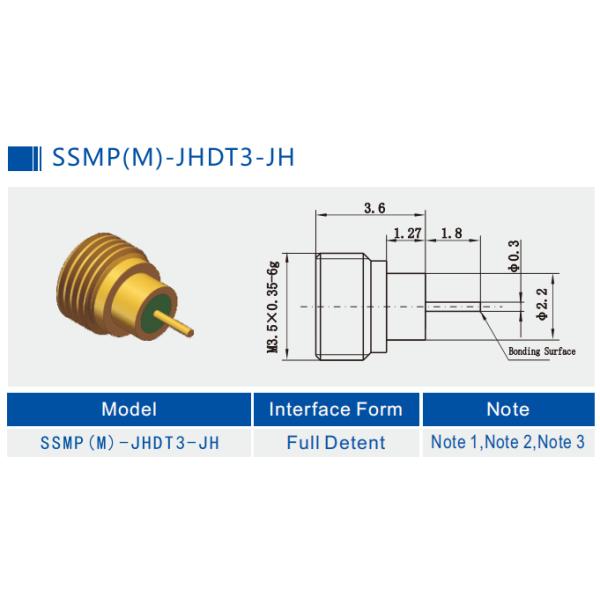

Other Screw Model ( Screw M3.5 X 0.35-6g )

Note 1:Hermetic Note 2:Bonding Surface Note 3: Engagement Depth 2.11

Please contact us at sales3@xa-elite.com.cn for model availability and additional series options.

Applications

Microwave communication systems
Measurement equipment
Aerospace applications
Radar systems
Electronics fields

Elite Electronic produce the SMPM connectors with premium materials and strict quality control processes to ensure exceptional durability and reliability in extrimily environments.

Packaging & Shipping

Each SMPM bulkhead connectors is carefully packaged in protective cartons to ensure safe transit. We use reliable courier services with tracking numbers provided for all shipments.

Note: For other similar adapter models, please check our catalog. While some models are in stock, all can be produced quickly for models listed in our catalog.
